Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

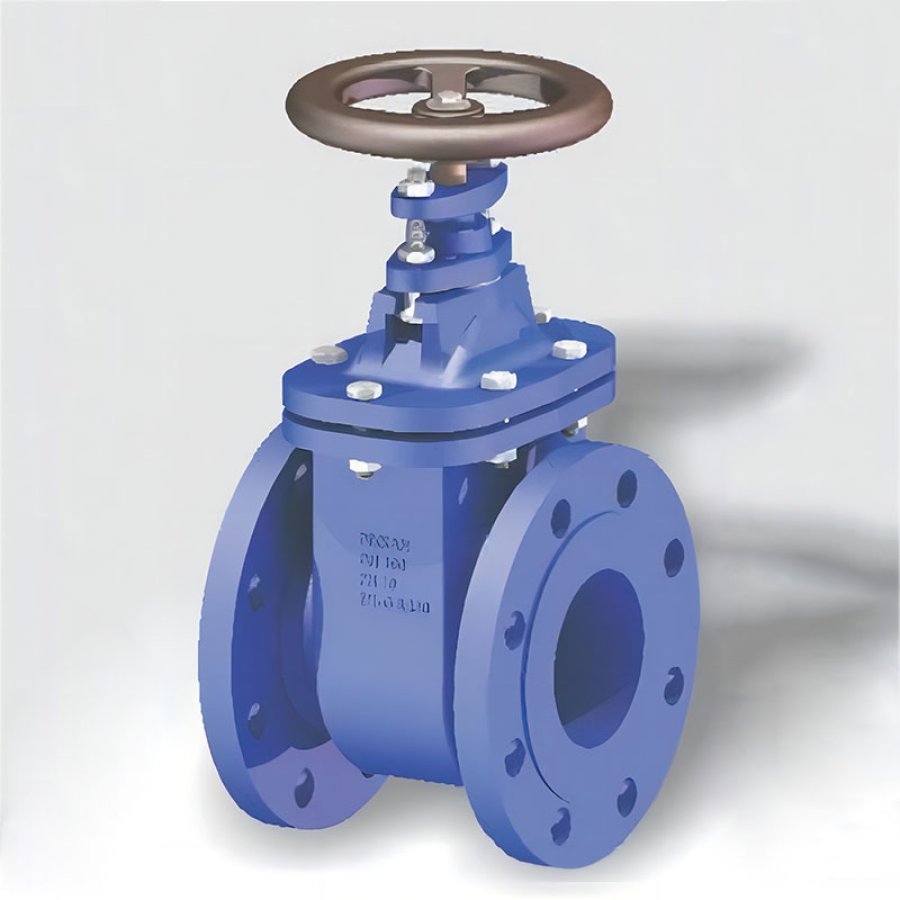

GATE VALVE -NON RISING STEM- WITHOUT INDICATOR SHORT TYPE-F4 | PN2.5-PN10 | 40-700 | fresh water,seawater,lubricating oll |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast iron/Ductile iron |
2 | Stem/seat | Bronze or Stainless steel |
3 | Design | DINEN1171(DIN3352 T2) |
4 | Face to Face | EN558 Series 14(DIN3202F4) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-2/B(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
DIMENSIONS：
DN（mm） | OD PN¹0 | OD PN¹6 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
40 | 150 | 150 | 140 | 235 | 140 | 11 |
50 | 165 | 165 | 150 | 235 | 140 | 13 |
65 | 185 | 185 | 170 | 255 | 160 | 17 |
80 | 200 | 200 | 180 | 280 | 160 | 20 |
100 | 220 | 220 | 190 | 305 | 200 | 28 |
125 | 250 | 250 | 200 | 390 | 200 | 40 |
150 | 285 | 285 | 210 | 435 | 200 | 50 |
175 | 315 | 315 | 220 | 490 | 200 | 65 |
200 | 340 | 340 | 230 | 530 | 250 | 85 |
250 | 395 | 405 | 250 | 630 | 315 | 135 |
300 | 445 | 460 | 270 | 720 | 315 | 180 |
350 | 505 | 520 | 290 | 840 | 400 | 225 |
400 | 565 | 580 | 310 | 890 | 400 | 295 |
450 | 615 | 640 | 330 | 985 | 400 | 350 |
500 | 670 | 715 | 350 | 1120 | 500 | 480 |
600 | 780 | 840 | 390 | 1290 | 500 | 590 |
700 | 895 | 910 | 430 | 1500 | 630 | 780 |
