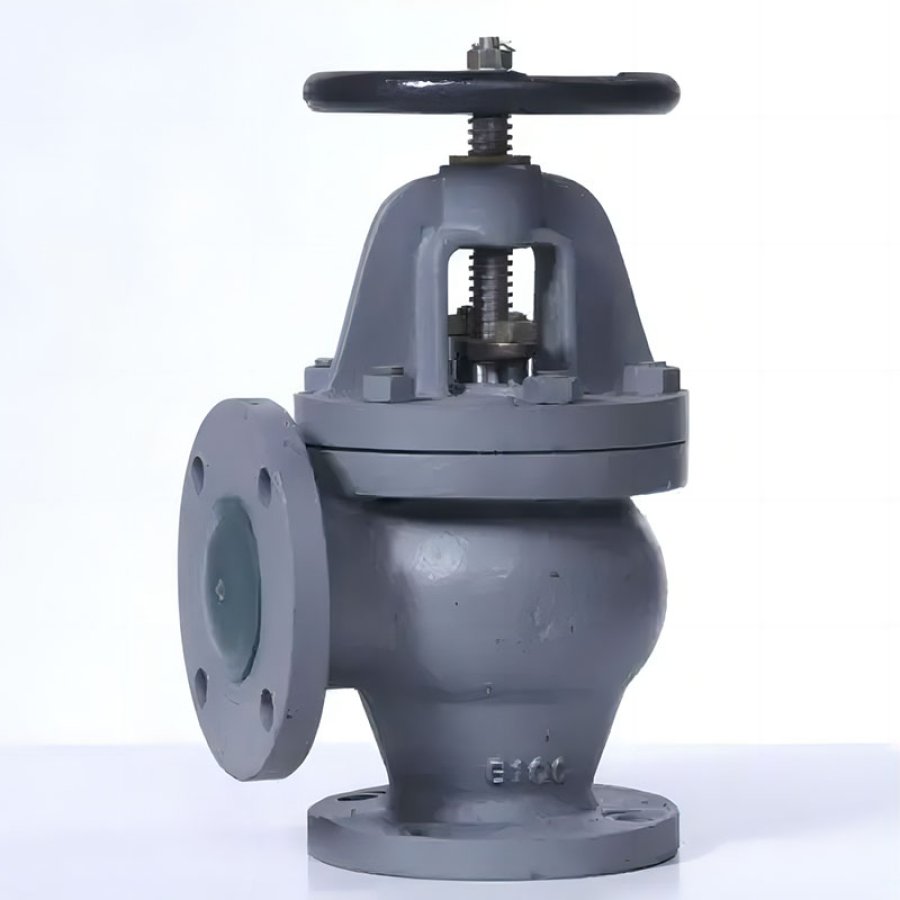

Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7306 | 5K | 50~400 | Steam,Air&Gas,Oil&Flow Water |
Manufactured in accordance to JIS F7400 • Flanges as per JIS B2220 – 5K
TESTS
Test Liquid | Water at Room Temp | |
Body Test | DN50 – DN300 | 1.03 Kgf/cm’ (10.5) |
DN350 – DN400 | 0.88 Kgf/cm’ (9) | |
DN450 – DN500 | 0.74 Kgf/cm’ (7.5) | |
Seat Test | DN50 – DN300 | 0.76 Kgf/cm’ (7.7) |
DN350 – DN400 | 0.65 Kgf/cm’ (6.6) | |
DN450 – DN500 | 0.54 Kgf/cm’ (5.5) | |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Iron | FC200 |
2 | Disc | Bronze/Stainless Steel | BC6/SS304/SS420 |
3 | Stem | Brass/Stainless Steel | H62/SS304/SS410 |
4 | Bonnet | Cast Iron | FC200 |
5 | Handwheel | Cast Iron | FC200 |
DIMENSIONS
IMPA CODE | DN | L1 | D | C | No. | h | t | H | D2 | Kg |
75 02 16 | 50 | 100 | 130 | 105 | 4 | 15 | 16 | 240 | 160 | 12.9 |
75 02 17 | 65 | 115 | 155 | 130 | 4 | 15 | 18 | 255 | 180 | 18.2 |
75 02 18 | 80 | 130 | 180 | 145 | 4 | 19 | 18 | 265 | 180 | 23.4 |
75 02 19 | 100 | 150 | 200 | 165 | 8 | 19 | 20 | 310 | 224 | 33.7 |
75 02 20 | 125 | 170 | 235 | 200 | 8 | 19 | 20 | 330 | 250 | 46.2 |
75 02 21 | 150 | 190 | 265 | 230 | 8 | 19 | 22 | 380 | 280 | 63.4 |
75 02 22 | 200 | 220 | 320 | 280 | 8 | 23 | 24 | 450 | 315 | 105 |
75 02 23 | 250 | 275 | 385 | 345 | 12 | 23 | 26 | 540 | 355 | 166 |
75 02 24 | 300 | 310 | 430 | 390 | 12 | 23 | 28 | 610 | 400 | 243 |
75 02 25 | 350 | 360 | 480 | 435 | 12 | 25 | 30 | 690 | 500 | 327 |
75 02 26 | 400 | 395 | 540 | 495 | 16 | 25 | 30 | 770 | 630 | 459 |
75 02 27 | 450 | 440 | 605 | 555 | 16 | 25 | 30 | 835 | 630 | 618 |
75 02 28 | 500 | 485 | 655 | 605 | 20 | 25 | 32 | 915 | 710 | 800 |
