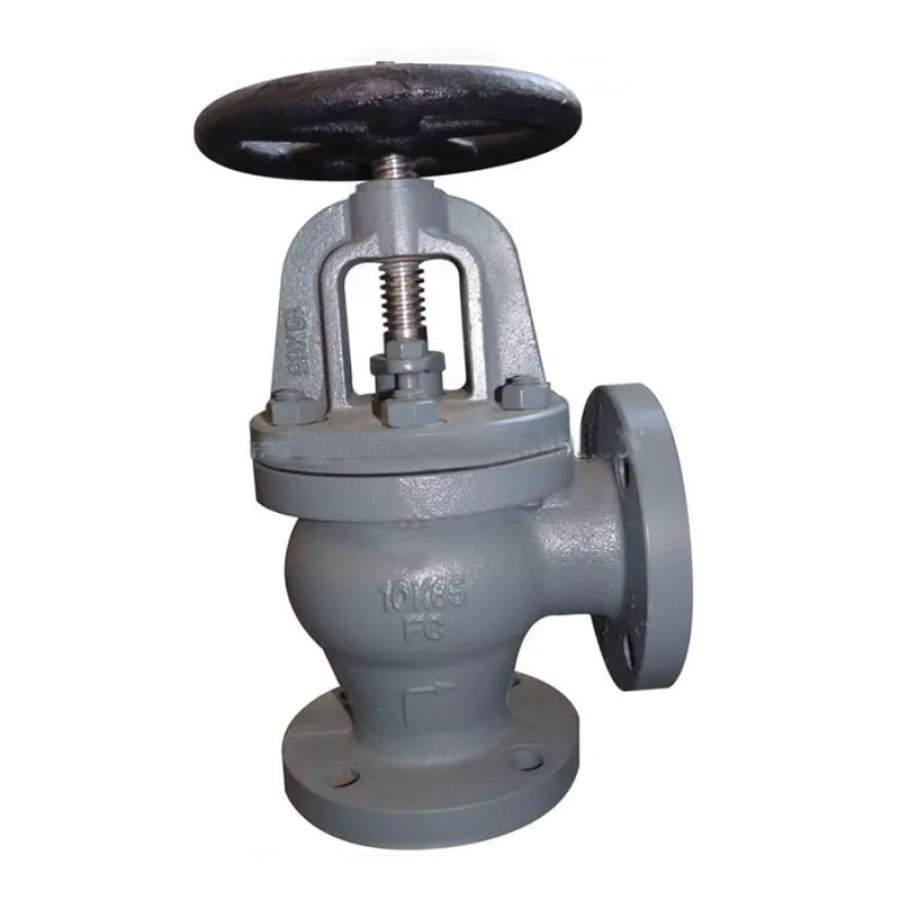

JIS F7308 10K Marine Cast Iron Angle Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7308 | 10K | 50~400 | Steam,Air&Gas,Oil&Flow Water |
Material of Main Parts:

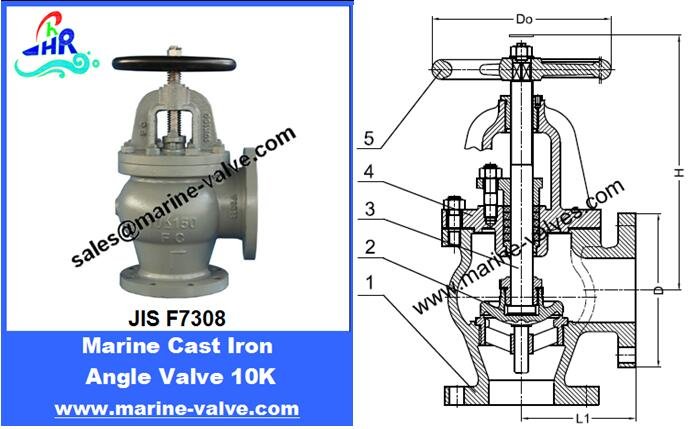

Item | Parts Name | Material | Code |
1 | Body | Cast Iron | FC200 |
2 | Disc | Bronze/Stainless Steel | BC6/SS304/SS420 |
3 | Stem | Brass/Stainless Steel | H62/SS304/SS410 |
4 | Bonnet | Cast Iron | FC200 |
5 | Handwheel | Cast Iron | FC200 |
Main Data：
Size | IMPA CODE | L | D | H | Do | Weight kgs |
10K50 | 750246 | 155 | 255 | 160 | 18.20 | |
10K65 | 750247 | 175 | 270 | 200 | 25.40 | |
10K80 | 750248 | 185 | 275 | 200 | 27.40 | |
10K100 | 750249 | 210 | 315 | 250 | 40.60 | |
10K125 | 750250 | 250 | 360 | 280 | 69.90 | |
10K150 | 750251 | 280 | 405 | 315 | 81.00 | |
10K200 | 750252 | 330 | 475 | 355 | 125.00 | |
10K250 | 750253 | 400 | 570 | 450 | 211.00 | |
10K300 | 750254 | 445 | 645 | 500 | 293.00 | |
10K350 | 750255 | 490 | 710 | 560 | 386.00 | |
10K400 | 750256 | 560 | 790 | 630 | 544.00 |
