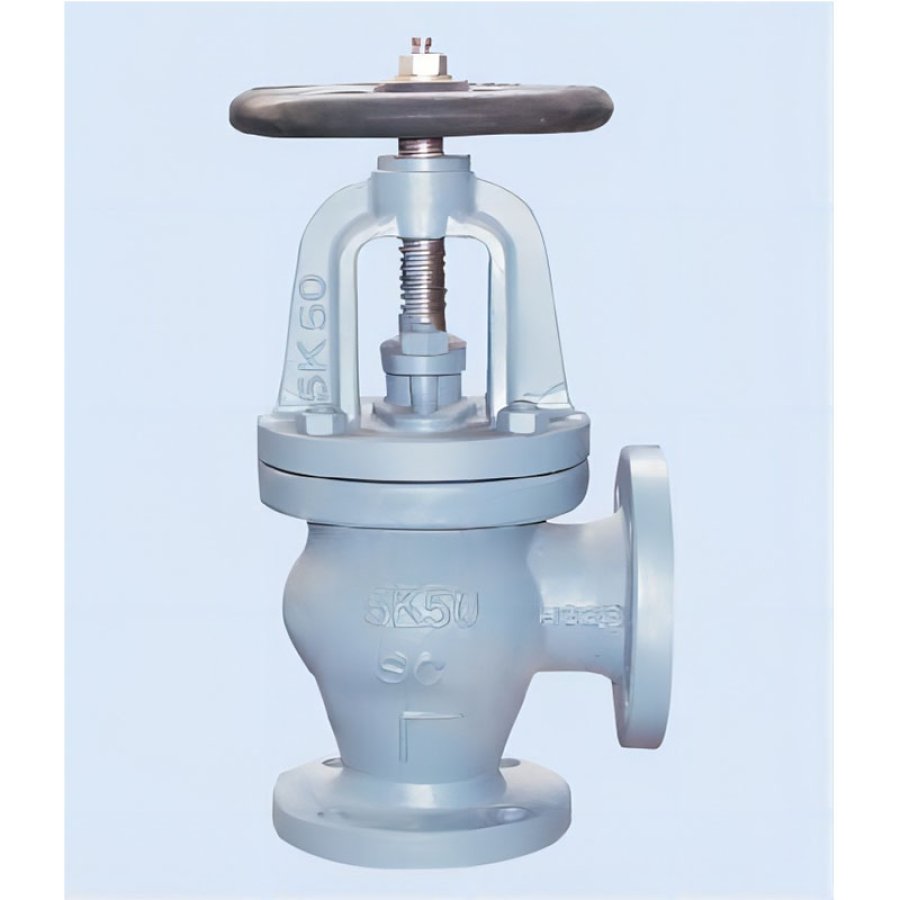

JIS F7312 5K Marine Cast Steel Angle Valve
Product Details
Technical Data:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |
JIS F7312 | 5K | 50~300 | Steam,Air&Gas,Oil&Flow.Lenitic Water |
Material of Main Parts:
Item | Parts Name | Material | Code |
1 | Body | Cast Steel | SC230~450 |
2 | Disc | Bronze/Stainless Steel | BC6/SS304/SS420 |
3 | Stem | Brass/Stainless Steel | H62/SS304/SS410 |
4 | Bonnet | Cast Steel | SC230~450 |
5 | Handwheel | Cast Iron | FC200 |
Main Data：
Size | IMPA CODE | L1 | D | H | Do | Weight kgs |
5K50 | 130 | 240 | 160 | 12.90 | ||
5K65 | 155 | 255 | 180 | 18.20 | ||
5K80 | 180 | 265 | 180 | 23.40 | ||
5K100 | 200 | 310 | 224 | 33.70 | ||
5K125 | 235 | 330 | 250 | 46.20 | ||
5K150 | 265 | 380 | 280 | 63.40 | ||
5K200 | 320 | 450 | 315 | 105.00 | ||
5K250 | 750406 | 275 | 385 | 540 | 355 | 178.00 |
5K300 | 750407 | 310 | 430 | 610 | 400 | 275.00 |
