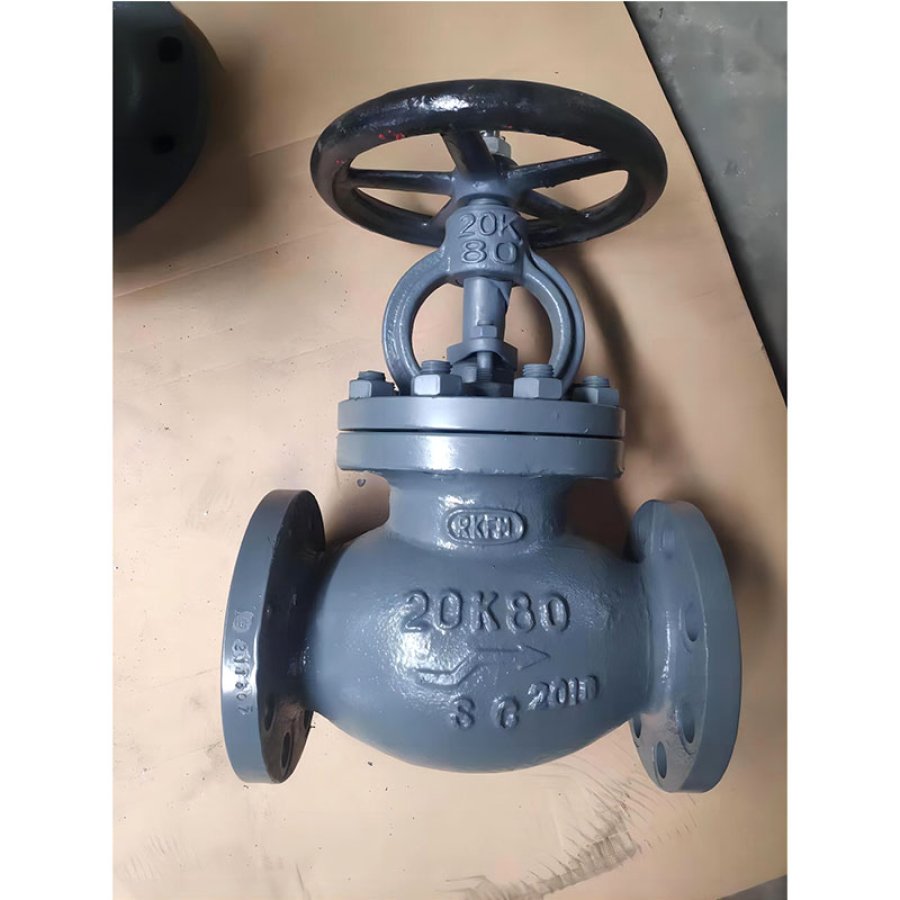

Design Standard: JIS F7313-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 5.00Mpa, Seat-3.67Mpa
Flange size as per JIS B2220 - 20K
Main Material:
Body: Cast Steel (SC480)
Bonnet: Cast Steel (SC480)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos
Main Size List(mm):

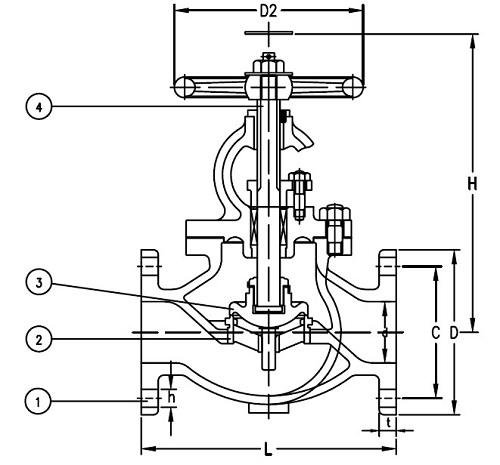

IMPA CODE | Size | L | D | C | No of Bolt Hole | h | t | H | D2 | Weight(kgs) |
750431 | 32 | 190 | 135 | 100 | 4 | 19 | 18 | 270 | 160 | 14.4 |
750432 | 40 | 200 | 140 | 105 | 4 | 19 | 18 | 190 | 160 | 16 |
750433 | 50 | 230 | 155 | 120 | 8 | 19 | 18 | 305 | 200 | 21.6 |
750434 | 65 | 270 | 175 | 140 | 8 | 19 | 20 | 345 | 224 | 30.4 |
750435 | 80 | 300 | 200 | 160 | 8 | 23 | 22 | 385 | 250 | 43.5 |
750436 | 100 | 350 | 225 | 182 | 8 | 23 | 24 | 440 | 280 | 62.3 |
750437 | 125 | 430 | 270 | 225 | 8 | 25 | 26 | 500 | 315 | 94.8 |
750438 | 150 | 500 | 305 | 260 | 12 | 25 | 28 | 550 | 355 | 132 |
750439 | 200 | 560 | 350 | 305 | 12 | 25 | 30 | 630 | 450 | 204 |
750440 | 250 | 660 | 430 | 380 | 12 | 27 | 34 | 725 | 560 | 336 |
